Windows

Optical windows are used in many optical systems to create optical components.  Windows play an important role in protecting

Windows and Optical Flats.

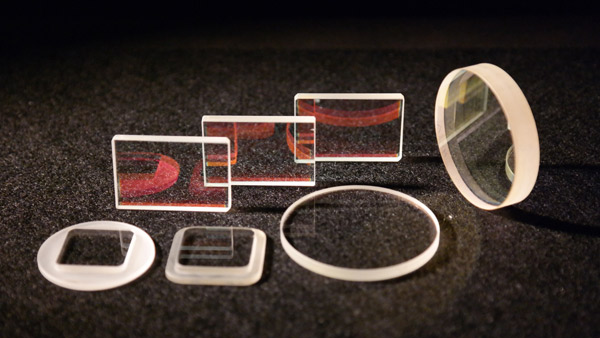

Optical windows are used to create a physical barrier between two different environments.It is used to prevent the two gases from mixing, to separate liquids in the air and to maintain a vacuum in the system.Optical windows are used to protect optical components from back-splatter and out-gassing in many optical systems.Optical windows can be manufactured in various shapes, but are usually produced in round or rectangular shapes.In addition, the optical window is made of two flat (PLANO) and polished surfaces with optical properties.



Your One-Stop Source for Optical Flat & Windows

We provides UV, visible and infrared rays from Proto-Type to mass production, from precision optical components to commercial windows.  We provide optical windows applied in the wavelength range.



Standard Spherical Lenses

PLANE WINDOWS - WEDGE < 3 MIN.

  • Substrate : CaF2(VUV), CaF2(IR), SUPRASIL 1, Sapphire, Silicon, Germanium, Zinc Selenide, or Zinc Sulfide
  • Diameter Tolerance : +0.0/-0.20 mm
  • Thickness Tolerance : ±0.25 mm
  • Transmitted Wavefront : measure at 633 nm
  • Wedge : < 3 arc min.
  • Clear Aperture : > 85% of diameter
  • Edge Bevel : 0.3 mm face width at 45˚

PARALLEL WINDOWS - WEDGE < 10 SEC.

  • Substrate : CaF2(VUV), CaF2(IR), SUPRASIL 1, Sapphire, Silicon, Germanium, Zinc Selenide, or Zinc Sulfide
  • Diameter Tolerance : +0.0/-0.20 mm
  • Thickness Tolerance : ±0.25 mm
  • Transmitted Wavefront : measure at 633 nm
  • Wedge : < 10 arc sec.
  • Clear Aperture : > 85% of diameter
  • Edge Bevel : 0.3 mm face width at 45˚

INTERFEROMETER FLATS - WEDGE 30 ± 5 MIN.

  • Substrate : SUPRASIL 1, UV Fused Silica, or BK7
  • Diameter Tolerance : +0.0/-0.20 mm
  • Thickness Tolerance : ±0.25 mm
  • Surface Flatness : λ /10 @ 633 nm
  • Surface Quality : 10-5 Laser Quality
  • Wedge : 30 ± 5 arc min .
  • Clear Aperture : > 85% of diameter
  • Edge Bevel : 0.3 mm face width at 45˚

LARGE WEDGE WINDOWS – 1˚, 2˚, AND 3˚

  • Substrate : UV Fused Silica, or BK7
  • Diameter Tolerance : +0.0/-0.20 mm
  • Thickness Tolerance : ±0.25 mm
  • Surface Flatness : λ /10 @ 633 nm
  • Surface Quality : 10-5 Laser Quality
  • Wedge : 30 ± 6 arc min .
  • Clear Aperture : > 85% of diameter
  • Edge Bevel : 0.3 mm face width at 45˚

SQUARE WINDOWS

  • Substrate : UV Fused Silica, or BK7
  • Diameter Tolerance : +0.0/-0.20 mm
  • Thickness Tolerance : ±0.25 mm
  • Surface Flatness : measure at 633 nm
  • Surface Quality : 10-5 Laser Quality
  • Wedge : 3 arc min .
  • Clear Aperture : > 85% of diameter
  • Edge Bevel : 0.3 mm face width at 45˚

RECTANGULAR WINDOWS

  • Substrate : UV Fused Silica, or BK7
  • Diameter Tolerance : +0.0/-0.20 mm
  • Thickness Tolerance : ±0.25 mm
  • Surface Flatness : measure at 633 nm
  • Surface Quality : 10-5 Laser Quality
  • Wedge : 3 arc min .
  • Clear Aperture : > 85% of diameter
  • Edge Bevel : 0.3 mm face width at 45˚

ELLIPTICAL WINDOWS

  • Substrate : UV Fused Silica, or BK7
  • Diameter Tolerance : +0.0/-0.20 mm
  • Thickness Tolerance : ±0.25 mm
  • Surface Flatness : λ /10 @ 633 nm
  • Surface Quality : 10-5 Laser Quality
  • Wedge : 3 arc min .
  • Clear Aperture : > 85% of diameter
  • Edge Bevel : 0.3 mm face width at 45˚

BREWSTER WINDOWS

  • Substrate : SUPRASIL 1 OR UV Fused Silica
  • Diameter Tolerance : +0.0/-0.20 mm
  • Thickness Tolerance : ±0.25 mm
  • Surface Flatness : λ /10 @ 633 nm
  • Surface Quality : 10-5 Laser Quality
  • Wedge : 3 arc min .
  • Clear Aperture : > 85% of diameter
  • Edge Bevel : 0.3 mm face width at 45˚
